Product details
Purchase price without GTS Allstar!
Compatible with:
- GTS Allstar
- GTS Top
- GTS Friend
With the grub screw ø8 mm you can fix the strut on the shaft of the GTS!
Technical data

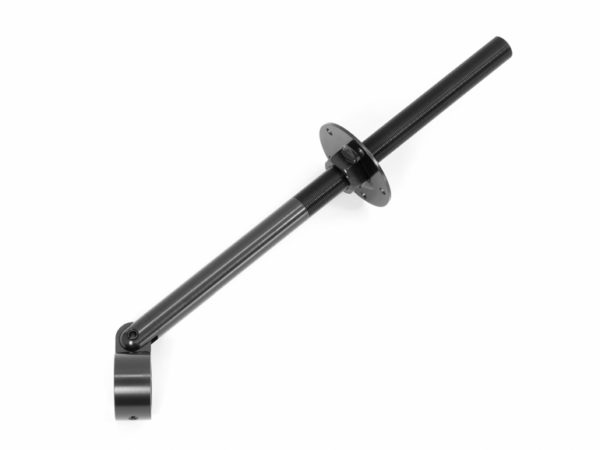

- Total length of the strut: 450 mm
- Length of M24 thread: 250 mm
- ø plate: 90 mm
- Height adjustable with nut M24 (SW 36)
- 5 holes ø 7.5 mm
- Ring for shaft large GTS ø 40 mm
- Total weight: 2030 g
- KTL coating
- Brace made of special steel alloy (not weldable!)
Field of Application
- Multiple struts on a large GTS
- Supporting cantilevered platform parts
- Construction of small and medium sized platforms
- Subsequent support
Not in the mood for wooden struts? For the use of “steel tube struts” please read this PDF!
Installation Instructions
Please follow our installation instructions exactly – this is the only way to ensure a permanently secure attachment!
What do you need?
- Pre-drill wooden brace: 24 mm Auger Bit
- Pipe spanner or open-ended spanner for height adjustment plate M24 (SW 36)
Working steps:
The wooden strut should have a cross-section of at least 9×9 cm. Select the desired location on the tree and platform. Mark the drill hole and install the GTS. The plate should be turned almost all the way down (towards the centre of the strut). Now put your wooden strut on the plate, find your top angle on the strut (get closer). Assemble everything and clamp your plate and strut firmly. Finally, screw the plate and strut together with five ø 6 x 100 wood screws.
Note:
- The strut / GTS may sag a little during the first load – it is best to screw the plate and strut together after the final load has been applied to the platform.
- The strut must only be loaded under lengthwise pressure.
- The upper connection between strut and platform must be bombproof (angle plates!).
Please follow our installation instructions exactly – this is the only way to ensure a permanently secure attachment!
Here you will find sexy installation videos and detailed step-by-step instructions.
