Strut-Connector T-Plate
Our strongest Connection for wooden struts on GTS
✔ Most stable version of the Strut Connector

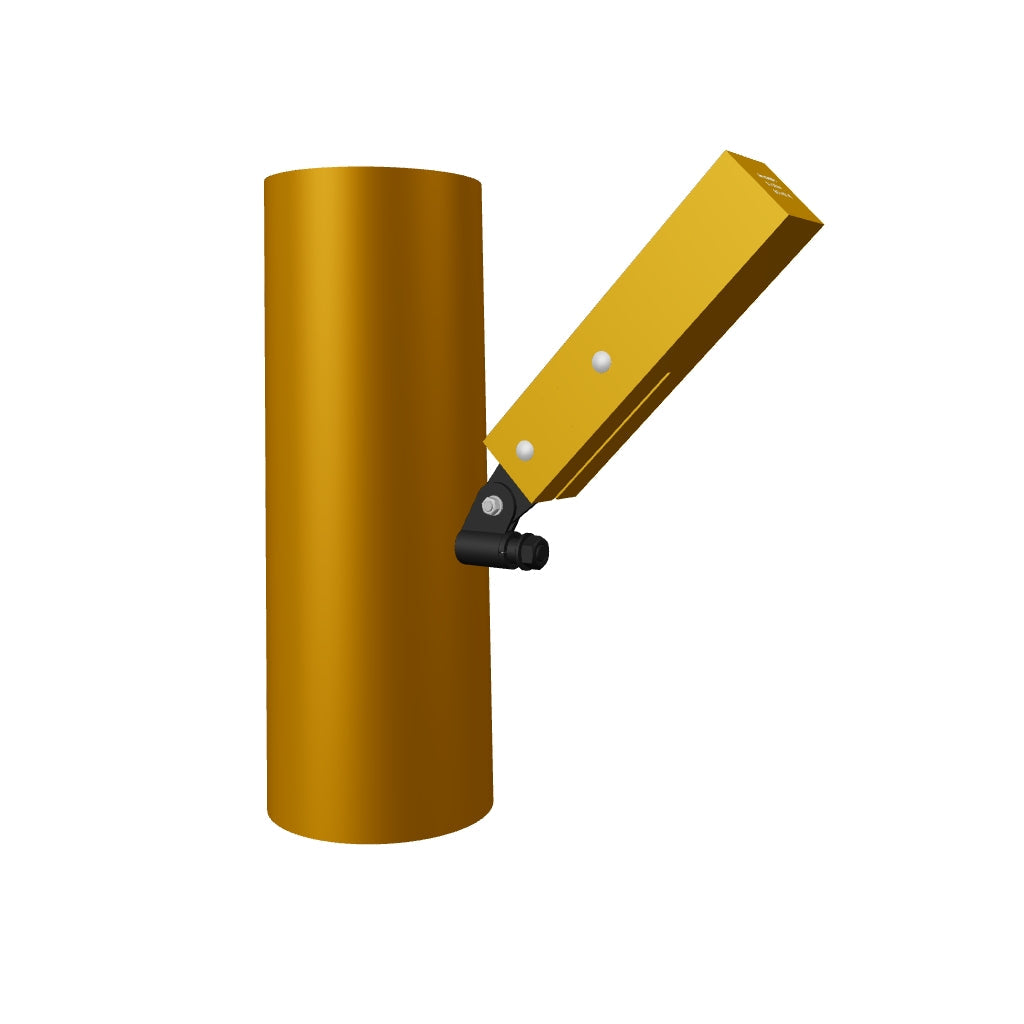

✔ Strut angle freely selectable – full flexibility during assembly
✔ Robust sheet metal tab for 8 mm slot in wooden beam
✔ Suitable for: GTS Allstar, Top, Friend
Two additional carriage bolts (Ø 12–14 mm) are required to secure the beam.
Tax included. Shipping calculated at checkout
Strut-Connector T-Plate
Dimensions & Technical Data
Dimensions of the wooden strut
- Square timber length < 2 m (6,6 ft): 9 × 9 cm
- Square timber length < 3 m (9,8 ft): 12 × 12 cm
- Square timber length < 4 m (13,1 ft): 14 × 14 cm
- Maximum strut length 4 m (13,1 ft)
Assembly: Quick guide
- The slot for the 8 mm thick sheet metal must be centred.
- The wooden beams and sheet metal are fastened with ø 10 - 12 mm carriage bolts.
- The strut must be firmly connected to the platform at the top with several long wood screws and, in case of high loads, additionally with a steel plate.
Detailed instructions are available here ...
Shipping & Delivery
Assembly & construction instructions

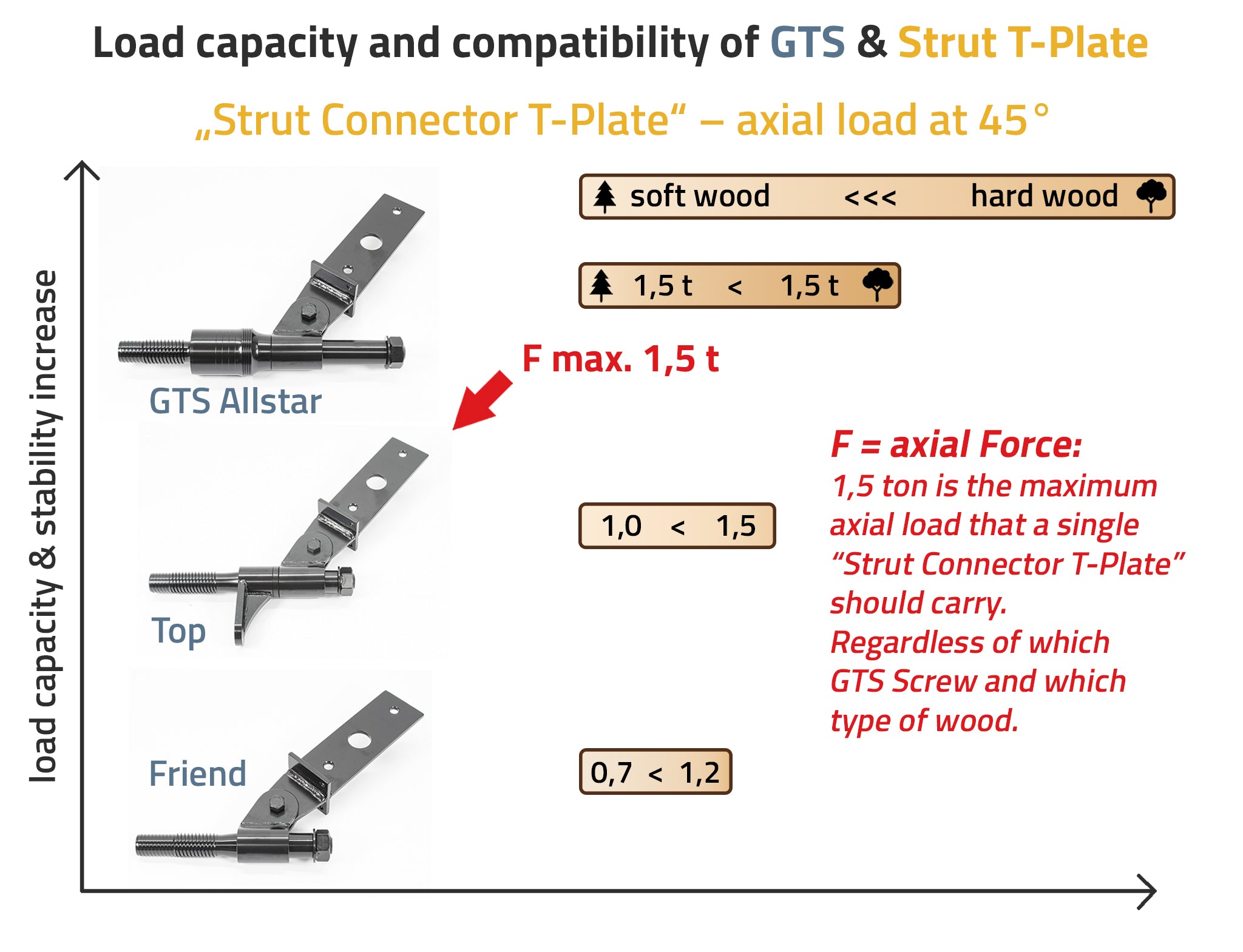

Load Capacity up to 1,500 kg
The load capacity per Strut Connector T-Plate should not exceed 1500 kg (at 45° pressure towards the tree). Two struts can be mounted on the GTS Allstar. Make sure that the GTS is not overloaded!
Plenty of design freedom

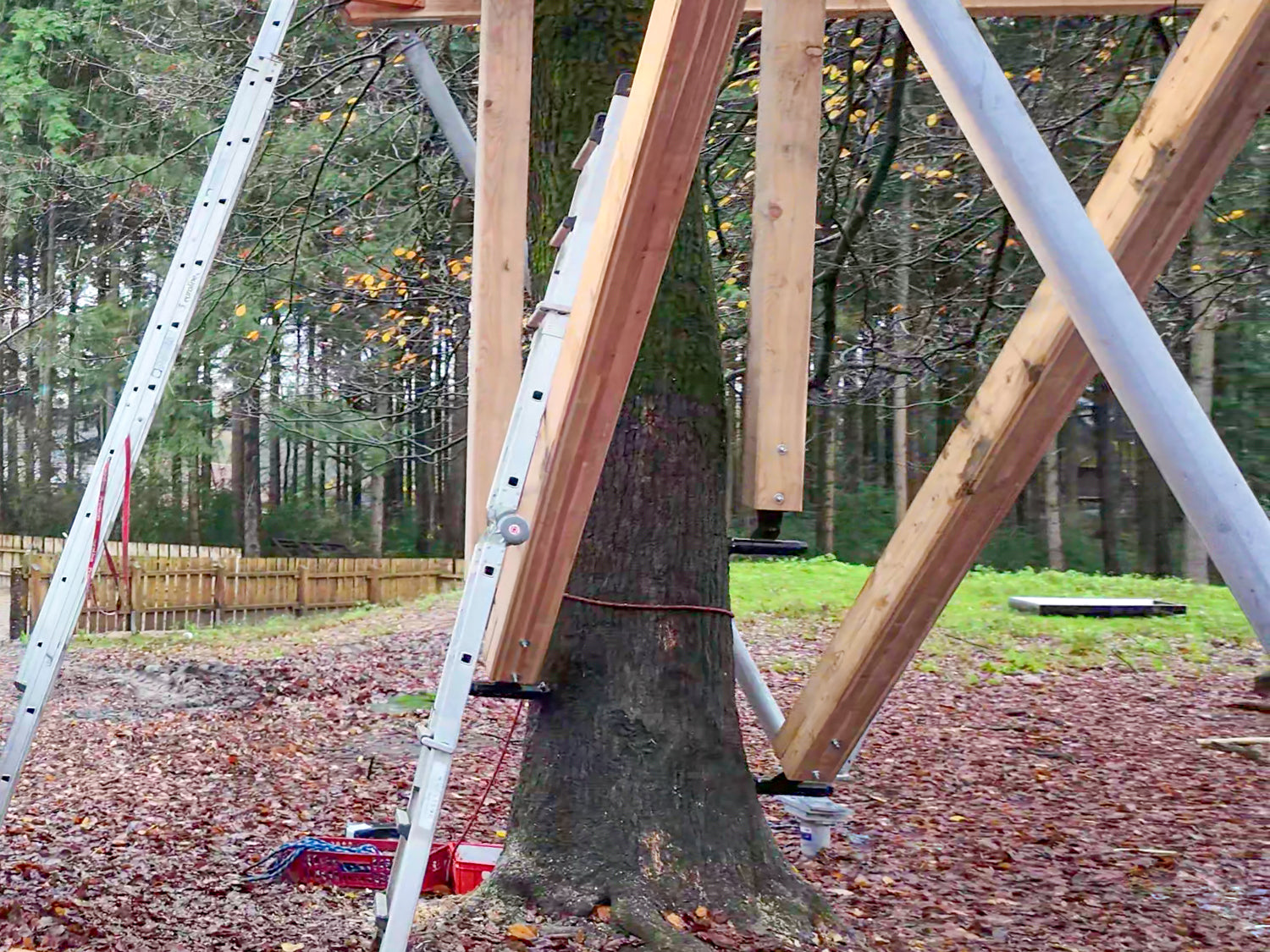

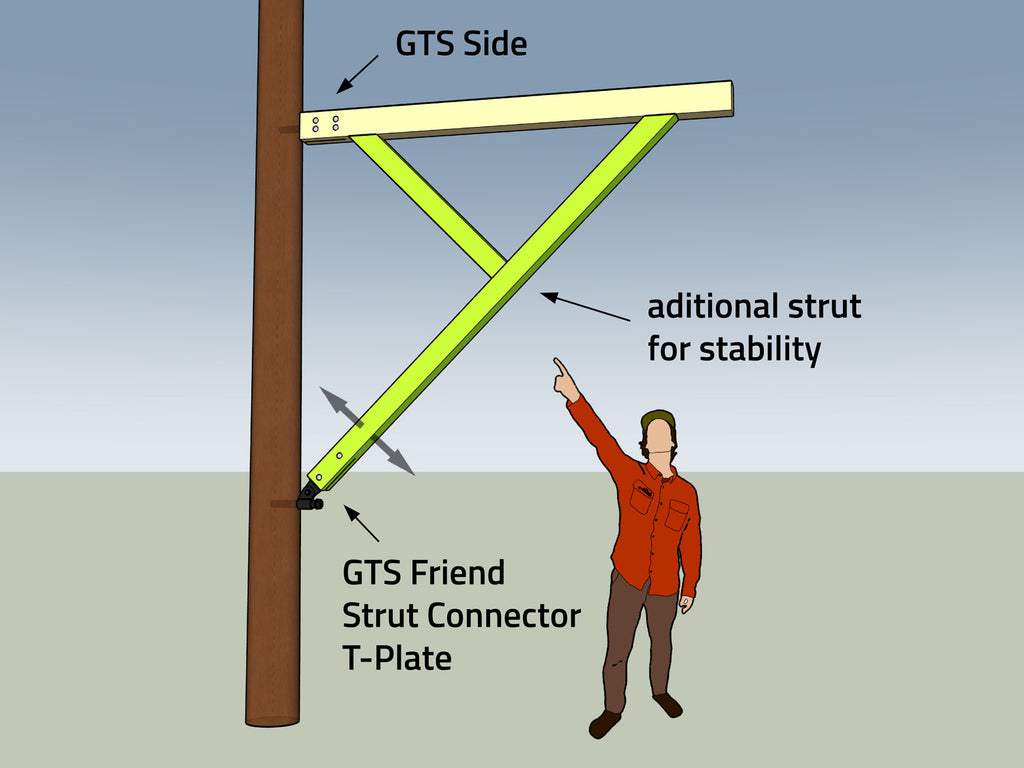

Installation is as easy as usual. The angle of the strut can be freely selected. The load should press the GTS towards the centre of the trunk. For very long supports, the buckling length can be reduced by adding intermediate struts.
Robust slot

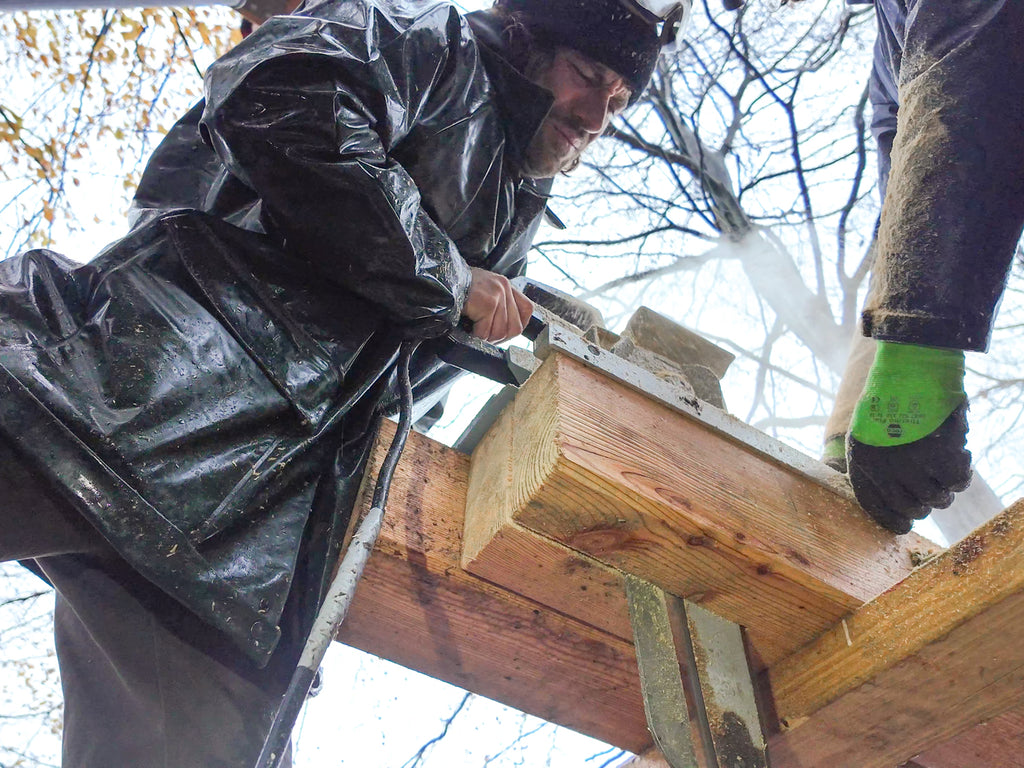

The slot for the 8 mm sheet metal must be sawn out in the centre. You can do this either with a carpentry chainsaw, as shown here, or with a normal chainsaw. Simply attach two wooden slats as guide rails to saw out the slot precisely.
